With ten times the durability optimum exposure amounts, and exceptional picture quality, the SuniRay2 represents the pinnacle of Suni's devotion to digital sensor design. SuniRay2 achieves maximal image quality with capabilities while keeping the radiation levels that are lowest among all sensors. The comprehensive and feature-rich Prof. Suni Advanced Imaging Software supplements that the SuniRay2's high-quality imaging with a broad array of user-friendly customization and image-enhancement tools.
The resolution of this high resolution detectors exceeds 15 lp/mm. The standard resolution of an X-ray image, as quantified by the modulation transfer function (MTF), exceeds 12 lp/mm. Utilizing a 60 kV intraoral X-ray source measures this. The sensor will produce a high-quality picture with an X-ray dose that's only a portion of the dose needed by film.
The system will make a superior image quality of images obtained when using standard picture. This enables the dentist to diagnose intraoral pathologies encountered through screening procedures. The sensor pixel well capacity is very high, allowing a greater lodging of grayscale (bone density) dynamic range.
Perfectly balanced electronic detector design--that is what we set out to accomplish with SuniRay2. And with excellent picture quality, durability, and low radiation levels that are industry-leading, SuniRay2 than accomplishes it. SuniRay2 provides practitioners with superior capabilities and picture quality while keeping the radiation levels among all of digital sensors. It is a digital imaging program that integrates with your entire practice.
The SuniRay2 is made with rounded corners and has a large picture area for optimal performance and patient comfort. It is. It can be operated on different workstations and will integrate with your practice management system.
The Most Durable Sensor on the Market
Designed for Optimal Patient Comfort
Easily Integrates with Practice Management
Rated ‘Excellent’ by the CR Foundation
Compatible with Windows XP, 7, & 8 (Mac software is available upon request).
Specs: 16-bit color, 1024 x 768 resolution. Cable adjusts from 6' to 15'. 2 year warranty.
|Technical Data||Size 1||Size 2|
|Sensor Dimensions (mm)||39.5 x 26||43.5 x 31.5|
|Active Area (mm)||31.1 x 20.2||35.2 x 26.2|
|Sensor Technology||CMOS APS Fiber Plates||CMOS APS Fiber Plates|
|Maximum Gray Levels||4096||4096|
|Sensor Cable||Adjustable: 6 ft. or 15 ft.||Adjustable: 6 ft. or 15 ft.|
|Cable Attachment||Reinforced Strain Relief||Reinforced Strain Relief|
|USB Module||Integrated USB 2.0 Module with LED indicator lights||Integrated USB 2.0 Module with LED indicator lights|
|Imaging Software||Prof. Suni Advanced Imaging Dr. Suni Advanced Imaging (INTL.) SuniMac (Mac-based imaging software) TWAIN-compliant software system||Prof. Suni Advanced Imaging Dr. Suni Advanced Imaging (INTL.) SuniMac (Mac-based imaging software) TWAIN-compliant software system|
|Warranty||2 Years||2 Years|
|CPU Speed||1.2 GHz Pentium 4||2.0 GHz Pentium 4|
|Memory||512 MB||1 GB|
|Operating System||Windows OS up to Windows 8|
|Windows OS up to Windows 8|
|Hard Disk||40 GB||80 GB|
|Monitor||S-VGA with 0.28 mm dot pitch||S-VGA with 0.25 mm dot pitch|
|Monitor Settings||16-bit color 1024 x 768 resolution||16-bit color 1024 x 768 resolution|
|USB Port||USB 2.0 and 3.0||USB 2.0 and 3.0|

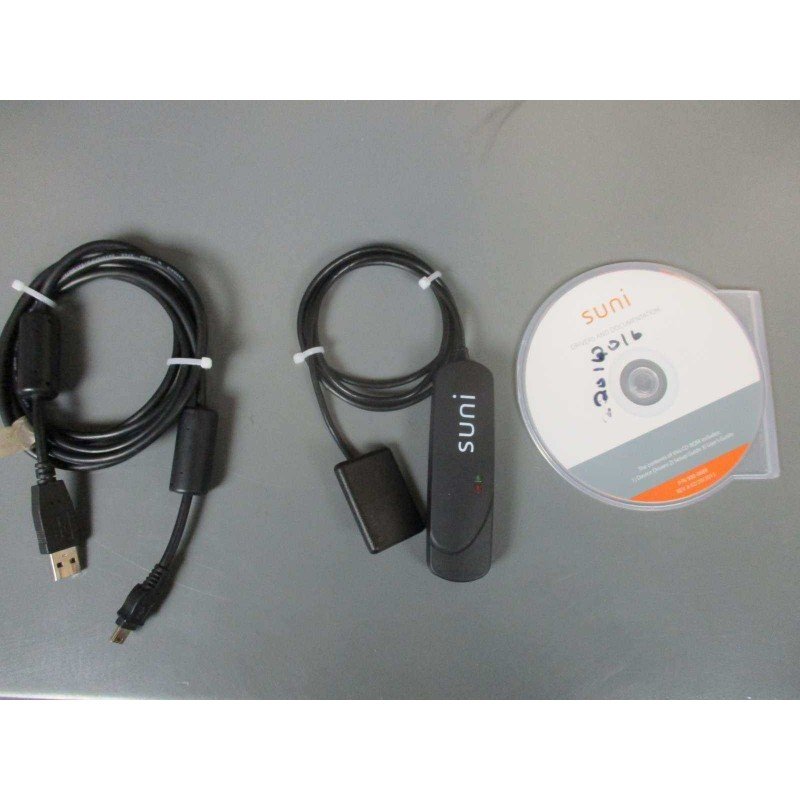

-SUNIRAY # 1 SENSOR ONLY (Includes USB Cable)
-SUNIRAY # 2 SENSOR ONLY (Includes USB Cable)
-SUNI PROFESSIONAL ADVANCED IMAGING SOFTWARE
Suniray2 Digital Dental X-ray Sensor Manufacturer Information
